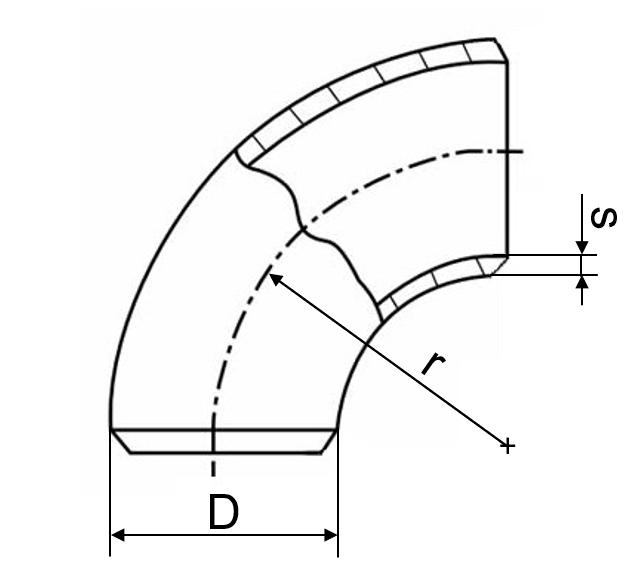

Form A geschweißt oder nahtlos
analog zu EN 10253 / DIN 2605
Werkstoff-Nr. 1.4301 / 1.4404/ 1.4541 / 1.4571 / S235 / P235GH
Darstellung und Maße können abweichen
Form A, geschweißt
| Art.-Nr. [1.4571] | D [mm] | s [mm] | r [mm] | m [kg] |
| 30140210202S | 21,3 | 2,0 | 25,0 | 0,03 |
| 30140210262S | 2,6 | 0,03 | ||
| 30140260202S | 26,9 | 2,0 | 25,0 | 0,04 |
| 30140260262S | 2,6 | 0,05 | ||
| 30140330202S | 33,7 | 2,0 | 28,0 | 0,06 |
| 30140330262S | 2,6 | 0,07 | ||
| 30140420202S | 42,4 | 2,0 | 32,0 | 0,10 |
| 30140420262S | 2,6 | 0,13 | ||
| 30140480202S | 48,3 | 2,0 | 38,0 | 0,14 |
| 30140480262S | 2,6 | 0,18 | ||
| 30140600202S | 60,3 | 2,0 | 51,0 | 0,23 |
| 30140600262S | 2,6 | 0,29 | ||
| 30140760202S | 76,1 | 2,0 | 63,0 | 0,36 |
| 30140760262S | 2,6 | 0,47 | ||
| 30140880202S | 88,9 | 2,0 | 76,0 | 0,57 |
| 30140880232S | 2,3 | 0,59 | ||
| 30140880262S | 2,6 | 0,66 | ||
| 30141140202S | 114,3 | 2,0 | 102,0 | 1,13 |
| 30141140262S | 2,6 | 1,16 | ||
| 30141140302S | 3,0 | 1,32 | ||
| 30141390302S | 139,7 | 3,0 | 127,0 | 2,03 |
| 30141390402S | 4,0 | 2,67 | ||
| 30141680262S | 168,3 | 2,6 | 152,0 | 2,58 |
| 30141680302S | 3,0 | 2,95 | ||
| 30142190302S | 219,1 | 3,0 | 203,0 | 5,14 |
| 30142190402S | 4,0 | 6,85 |
Form A, nahtlos
| Art.-Nr. [1.4571] | D [mm] | s [mm] | r [mm] | m [kg] |
| 30140210202SN | 21,3 | 2,0 | 25,0 | 0,03 |
| 30140210232SN | 2,3 | 0,03 | ||
| 30140210262SN | 2,6 | 0,03 | ||
| 30140210322SN | 3,2 | 0,04 | ||
| 30140260232SN | 26,9 | 2,3 | 25,0 | 0,05 |
| 30140260262SN | 2,6 | 0,05 | ||
| 30140260292SN | 2,9 | 0,06 | ||
| 30140260322SN | 3,2 | 0,07 | ||
| 30140260402SN | 4,0 | 0,09 | ||
| 30140330262SN | 33,7 | 2,6 | 28,0 | 0,09 |
| 30140330322SN | 3,2 | 0,11 | ||
| 30140330362SN | 3,6 | 0,13 | ||
| 30140330402SN | 4,0 | 0,14 | ||
| 30140420262SN | 42,4 | 2,6 | 32,0 | 0,15 |
| 30140420362SN | 3,6 | 0,20 | ||
| 30140420402SN | 4,0 | 0,22 | ||
| 30140420452SN | 4,5 | 0,25 | ||
| 30140420502SN | 5,0 | 0,27 | ||
| 30140480262SN | 48,3 | 2,6 | 38,0 | 0,20 |
| 30140480322SN | 3,2 | 0,24 | ||
| 30140480362SN | 3,6 | 0,26 | ||
| 30140480402SN | 4,0 | 0,29 | ||
| 30140480452SN | 4,5 | 0,32 | ||
| 30140480502SN | 5,0 | 0,36 | ||
| 30140600292SN | 60,3 | 2,9 | 51,0 | 0,35 |
| 30140600322SN | 3,2 | 0,39 | ||
| 30140600362SN | 3,6 | 0,43 | ||
| 30140600402SN | 4,0 | 0,48 | ||
| 30140600452SN | 4,5 | 0,53 | ||
| 30140600502SN | 5,0 | 0,59 | ||
| 30140600562SN | 5,6 | 0,65 | ||
| 30140600632SN | 6,3 | 0,72 | ||
| 30140760292SN | 76,1 | 2,9 | 63,0 | 0,58 |
| 30140760362SN | 3,6 | 0,71 | ||
| 30140760402SN | 4,0 | 0,78 | ||
| 30140760452SN | 4,5 | 0,87 | ||
| 30140760502SN | 5,0 | 0,96 | ||
| 30140760562SN | 5,6 | 1,07 | ||
| 30140760632SN | 6,3 | 1,19 | ||
| 30140760712SN | 7,1 | 1,33 | ||
| 30140880322SN | 88,9 | 3,2 | 76,0 | 0,88 |
| 30140880402SN | 4,0 | 1,09 | ||
| 30140880452SN | 4,5 | 1,21 | ||
| 30140880502SN | 5,0 | 1,34 | ||
| 30140880562SN | 5,6 | 1,49 | ||
| 30140880632SN | 6,3 | 1,66 | ||
| 30140880802SN | 8,0 | 2,07 | ||
| 30141140362SN | 114,3 | 3,6 | 102,0 | 1,62 |
| 30141140402SN | 4,0 | 1,79 | ||
| 30141140452SN | 4,5 | 2,01 | ||
| 30141140562SN | 5,6 | 2,48 | ||
| 30141140632SN | 6,3 | 2,77 | ||
| 30141140712SN | 7,1 | 3,10 | ||
| 30141140882SN | 8,8 | 3,78 | ||
| 30141390402SN | 139,7 | 4,0 | 127,0 | 2,79 |
| 30141390452SN | 4,5 | 3,12 | ||
| 30141390502SN | 5,0 | 3,46 | ||
| 30141390632SN | 6,3 | 4,31 | ||
| 30141390712SN | 7,1 | 4,83 | ||
| 30141390802SN | 8,0 | 5,41 | ||
| 30141391002SN | 10,0 | 6,66 | ||
| 30141680452SN | 168,3 | 4,5 | 152,0 | 4,43 |
| 30141680562SN | 5,6 | 5,47 | ||
| 30141680632SN | 6,3 | 6,13 | ||
| 30141680712SN | 7,1 | 6,87 | ||
| 30141680802SN | 8,0 | 7,70 | ||
| 30141681102SN | 11,0 | 10,40 | ||
| 30142190632SN | 219,1 | 6,3 | 203,0 | 10,9 |
| 30142190802SN | 8,0 | 13,70 | ||
| 30142191082SN | 8,8 | 15,10 | ||
| 301421911002SN | 10,0 | 17,00 | ||
| 30142191252SN | 12,5 | 21,00 |
